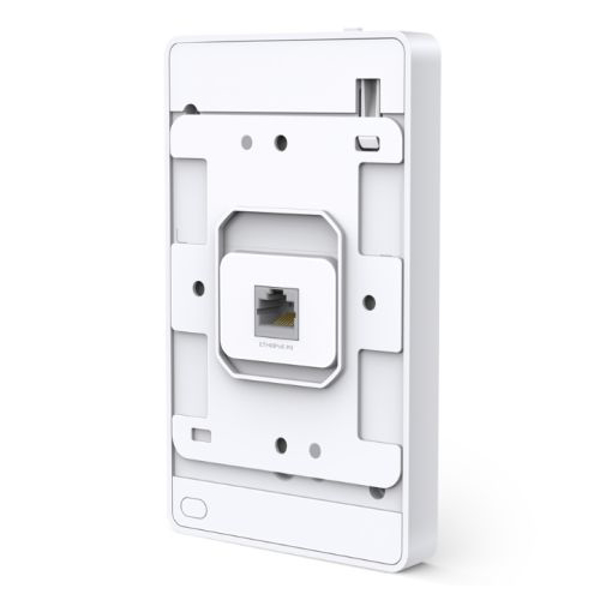

TP-LINK EAP235-WALL Omada AC1200 Wireless Wall Mount Access Point, Dual Band, PoE, Gigabit, MU-MIMO, Free Software

Quick Code: 19574
SKU: NET-EAP235-WALL
Manufacturer part number: EAP235-WALL
Manufacturer: TP Link
£95.45
£76.79

TP-LINK EAP235-WALL Omada AC1200 Wireless Wall Mount Access Point, Dual Band, PoE, Free Software

Unprecedented thin design with just15mm.
802.11ac wave 2 technology allows multiple users to access the internet at the same time.
EAP235-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.
The same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.
Centralized Cloud Management-Anytime, Anywhere.
Easy Managment with Omada App.

Private Connection for Every Room. EAP235-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user.



Techincal Specification


General
Device Type Wireless router
Enclosure Type Wall-mountable
Connectivity Technology Wireless, wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Frequency Band 2.4 GHz / 5 GHz
Network / Transport Protocol HTTP, HTTPs
Remote Management Protocol SNMP 1, SNMP 2c, HTTP, HTTPS, SSH
Encryption Algorithm 128-bit WEP, 64-bit WEP, 152-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK, WPA2-Enterprise
Authentication Method Secure Shell (SSH), Radio Service Set ID (SSID)
Features Syslog support, E-mail alert, MAC address filtering, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), reset button, rogue access point detection, 802.1x authentication, cloud managed, MU-MIMO technology, beamforming technology, band steering, rate limit, Wireless Scheduler, LED on/off button, guest access, Zero-touch provisioning (ZTP), schedule reboot
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2, RoHS
Expansion / Connectivity
Interfaces LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45
Power
Power Consumption Operational 7 Watt
Miscellaneous
Mounting Kit Included
Software / System Requirements
OS Required Microsoft Windows XP / Vista / 7 / 8 / 10
Dimensions & Weight
Width 8.68 cm
Depth 3.02 cm
Height 8.68 cm
