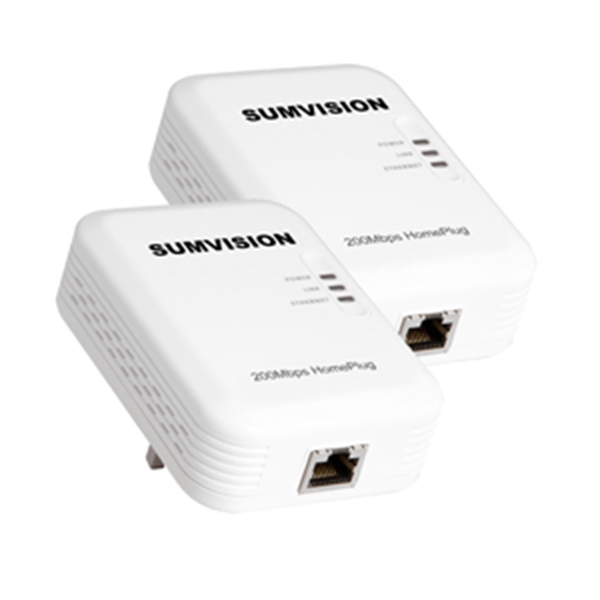

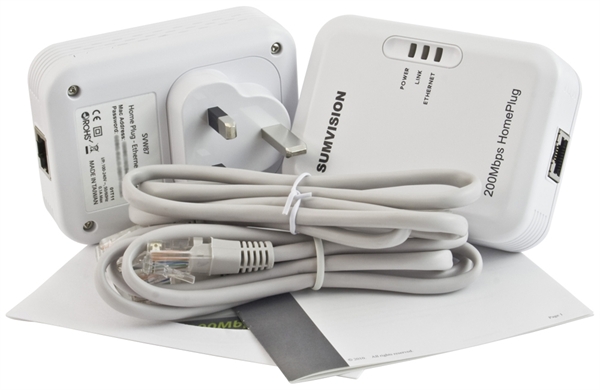

Sumvision 200Mbps HomePlug Kit Powerline Network Plugs

Sumvision SVW87 200Mbps Homeplug Kit Ethernet Adapter - TWIN PACK

• High Definition (HD) and standard definition (SD) video distribution.
•  Internet Protocol Television (IPTV)
• Audio distribution
• Backbone and extender for Wi-Fi, UWB
• STB extender
• Voice over Internet Protocol (VoIP)
• Networking and online gaming
• Shared broadband Internet access using standard in-home/SOHO AC power line

Specifications:

Signalling:
Frequency band 2 – 28MHz (with mask)
Modulation OFDM (QAM 8/16/64/256/1024, DBPSK, DQPSK, ROBO)
PHY Rate: 200Mbps
TCP: Up to 65 – 70Mbps effective throughput
UDP: Up to 85 – 90Mbps effective throughput

Access Methods:
CSMA/CA channel-access schemes

QoS:
4 level priority based contention access and multi segment bursting.
8 level VLAN priority field.

Nodes:
Up to 63 slaves with 1 master, 64 total devices.
4 overlapping networks for neighbour networks with CCo failover.
Up to 4 masters with up to 252 slaves, 256 total devices in 4 AVLNs.
Up to 4096 addressable devices including bridged devices.

IGMP:
Support for IPv4/IGMP v1, v2, v3 snooping.
Support for IPv6 and MLD v1, v2 snooping
Max 16 source addresses and group members

Security Encryption:
128 bit AES Link Encryption with key management.

Standards:
IEEE 802.3, IEEE 802.3U, HomePlug AV 1.1

Port:
One 10/100 Ethernet RJ45 port.

Electrical:
Power Supply: 100 – 240 VAC 50/60Hz Power Consumption: <5W

Operating System:
Windows 98SE, Me, 2000, XP Vista, 7 Mac and Linux.

Environmental:
Operating temperature: 0 ~ 40C
Operating Humidity: 10 ~ 85% non-condensing

Physical:
Dimension: 95mm x 65mm x 80mm (L x W x H)
