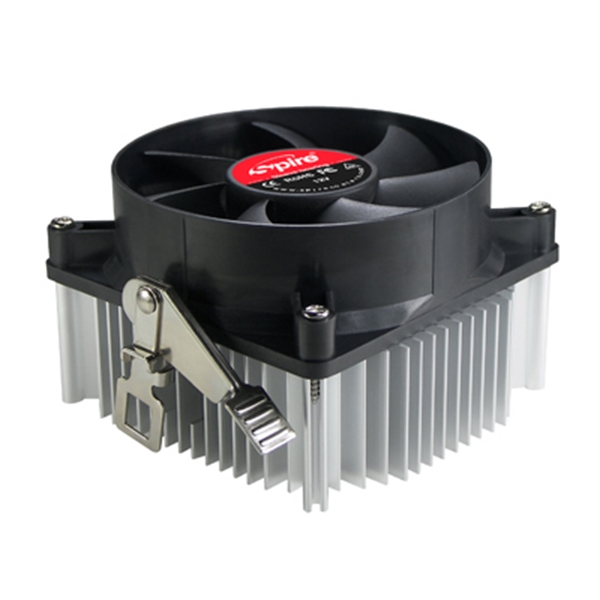

Spire SP804S3-1 / Socket 940 / 939 / 754 / AM2 CPU Cooler

Quick Code: 1886
SKU: FAN-SP804S3-1
Manufacturer part number: SP804S3-1
Manufacturer: Generic
Availability: In stock
£5.95

Description:

The all new CoolReef is a cost effective performance cooler. Generating ample airflow through its 80mm fan duct design providing excellent cooling performance. A large quality manufactured heat-sink dissipates the heat well to ambient. Thermal interface material is pre-applied and the one point clip enables safe mounting and tool-free assembly.

Main Features:
* 80x80x25mm Silent air-duct fan type
* Extruded large aluminum heat-sink
* Uncompromising performance by the thermal leader you can trust
* Supports all new AM2 / K8 / Athlon & Sempron micro-processors up to 89W

Product Includes :
* Multilanguage Owners Manual

  Product Specification
AM2 Static cooler
Dimensions Heat sink :   77×85×285 mm (l × w × h)
Bearing Sleeve bearing
Rated speed 2700 RPM +/-10%
Rated power 1.92 W
Noise level 21.0 dBA
Air flow 35.7 at 2700 RPM +/-10%
Current 0.16 A
Life hours Sleeve: 30.000
Features Supports all new AMD K8 & AM2 micro-processors, 80x80x25mm sleeve fan for silent operation, Extruded heat-sink for optimal heat conductivity
Connector 3 pin, main board
Application
AMD :   Athlon 64 ~ 5600+ (K8)
Athlon X2 ~ 9500 GHz (AM2)
Opteron ~ 2.6 (K8)
Sempron ~ 3000+ (K7)
Sempron ~ 3300+ (K8)
Thermal resistance 0.35 °C/W
Thermal type Stars-420 white grease(pre-applied)
*All Spire CPU cooling products come with thermal compound either pre-applied onto the cooler or in an injection tube. Compound will begin to function at its optimum potential, after a gradual increase in heat-dissipation, approximately 168 hours (7days) after initial application.
* All technical data shown above are measurements from our own laboratory. Product images shown may differ from actual product. Specifications are subject to change without prior notice.
