World’s 1st PCI Express Gen 3 mainboard brand
With ultra-high 32GB/s transfer bandwidth, PCI Express Gen 3 provides a 2X faster transfer rate than the previous generation, this delivers amazing capabilities for true next generation extreme gaming.
Benefits:
- 2X bandwidth
- Increased efficiency and compatibility
- Extreme performance for current and next gen PCI Express cards

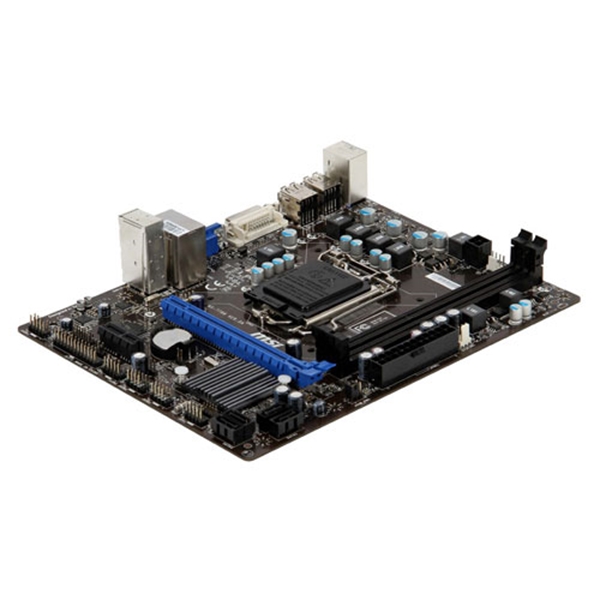

Techincal Specification
Chipset
• Intel® H61 (B3) Chipset
Main Memory
• Supports two unbuffered DIMM of 1.5 Volt DDR3 1066/1333 DRAM, 16GB Max
- Supports Dual channel mode
Slots
• 1 PCI Express gen3 x16 slot, supports up to PCIe 3.0 x 16 speed
• 1 PCI Express gen2 x1 slot
On-Board SATA
• SATAII controller integrated in Intel® H61 (B3) chipset
- Up to 3Gb/s transfer speed.
- Supports four SATAII ports (SATA1~4) by H61 (B3) PCH
Audio
• Chipset integrated by Realtek® ALC887
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spec
LAN
• Supports one PCI Express LAN 10/100 Fast Ethernet by Realtek 8105E.
Internal I/O Connectors
- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- CPU x 1 / System x 2 FAN connectors
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
- 2 x USB 2.0 connectors
- 4 x Serial ATAII connectors
- 1 x Clear CMOS jumper
- 1 x Serial port connector
- 1 x Parallel port connector

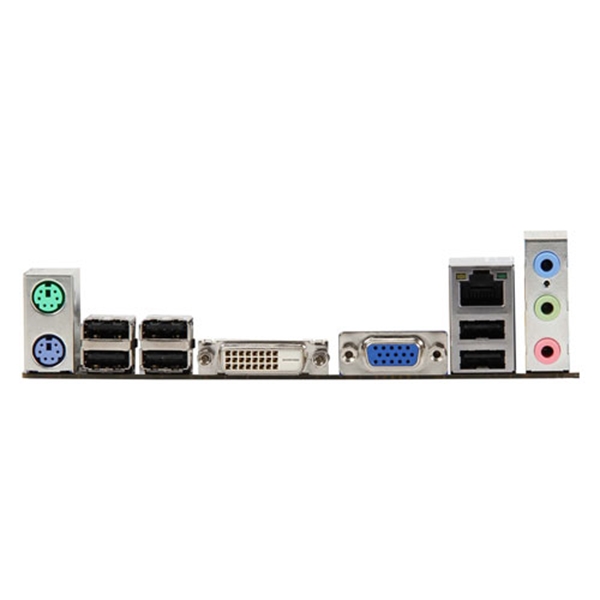

Back Panel I/O Ports
- 1 x PS/2 Mouse port
- 1 x PS/2 Keyboard port
- 6 x USB 2.0 ports
- 1 x Graphic Card port
- 1 x DVI-D port
- 1 x RJ45 LAN Jack
- 1 x 3 in 1 audio jack
Features:
OC Genie II
Just press the OC Genie button or enable OC Genie II function in BIOS menu, the CPU performance (P67 series) or the 3D performance of iGPU (H67/H61 series) will be highly improved. Whether users want to watch a high bit-rate HD movie or go online gaming, both can be enjoyed with image performance that is smoother and lag-free!
Features
- Exclusive OC Genie detect hardware configuration
- Intelligently auto set clock/voltage of CPU and memory or iGPU
- Increase overall system performance in 1 second
Intel 22nm CPU Ready
Designed to be compatible with 3rd Gen Intel® Core™ i7/ Core™ i5/ Core™ i3/ Pentium®/ Celeron® processors for LGA 1155 socket
B3 Stepping Ready
To fix Intel’s 6 Series chipset design error, the SATA problems in its 6 Series chipset, MSI implements the latest Intel B3 Stepping 6 Series chipset on its Z68/P67/H67 mainboards for fixing SATA problems in the Intel Series 6 chipsets. Consumers can now identify the latest MSI Z68/P67/H67 mainboards equipped with the Intel B3 Stepping chipset with the MSI B3 Stepping Ready logo. This provides a more confident way to identify your next-generation P67/H67 mainboard.
ClickBIOS Concept
Click BIOS Concept is based on the new UEFI technology which supports todays latest hardware. From faster booting to supporting large hard drives with a capacity of over 3TB. MSI's Click BIOS can be controlled with both a keyboard, but it also supports mouse control which simplifies navigating and manipulating system settings.
