Look and Feel
Cunning and curvaceous with mirrored dual-tone finishes
Sleek Air-intake Ventilation Design
Artistically-crafted front intake vents with built-in LED illuminated 12cm intake fan.
Liquid Cooling Upgrade Primed
Dual tube outlets for future liquid cooling support.

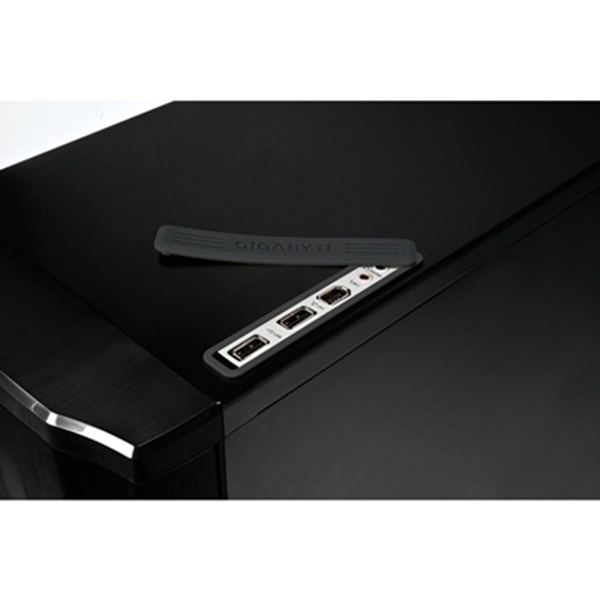

User-friendly and Elegant Design
Multi-media front I/O all located on top of the chassis for easy access.
Washable Dust Filter
Front lower clip-off washable dust filter.
I

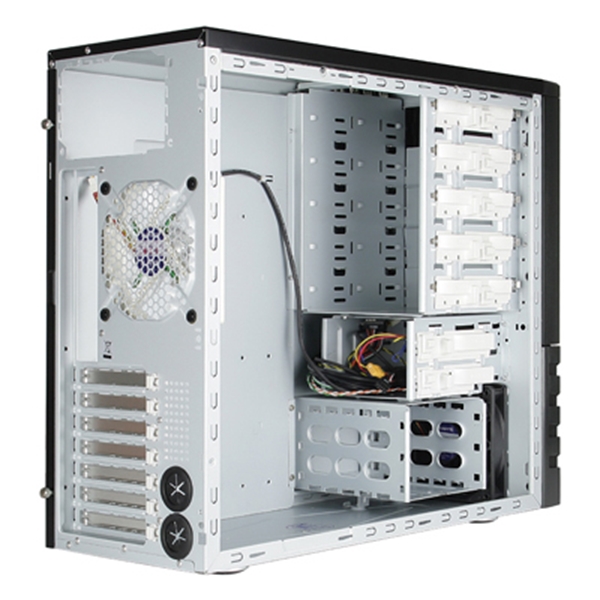

nternal Liquid System Space Provisions
Provisions have been made for the future upgrades to liquid-cooling systems, recommended: GIGABYTE 3D Galaxy liquid cooling system.

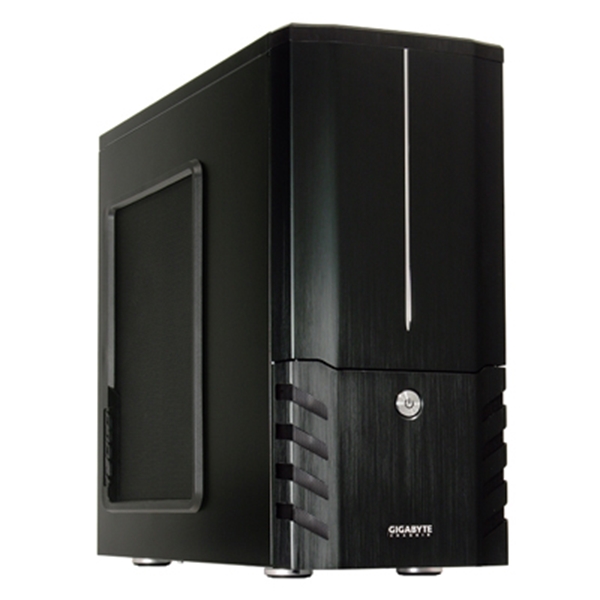

Dual Exchangeable Side Panels
Users may change the side panel according to their preferences, either the clear transparent acrylic window or the ventilated steel mesh plate
Technical Specification:
Model no. GZ-AA4CBP-SJB
Dimensions ( W x H x D ) 200 x 440 x 500 mm
Material Aluminum / 0.7 mm SECC
Color (s) Black
Side panel (s) Vent / Transparent
Drive bays 5.25" x 5, 3.5" x 1+4 (internal)
Expansion slots 7
Form factor ATX / Micro ATX
I / O ports 2 x USB 2.0 / 1 x IEEE1394 / 1 x Audio Set (AC'97/HD)
Fans Front : 120mm silent fan x1
Rear: 120mm silent fan equipped with blue LEDs x1
Weight 8.6 kg / 18.9 IB
