Avtech AVZ2116 16CH Pentabrid IP/HD/TVI/CVI/960H 5 in 1 + Push Video + IVS + RS4

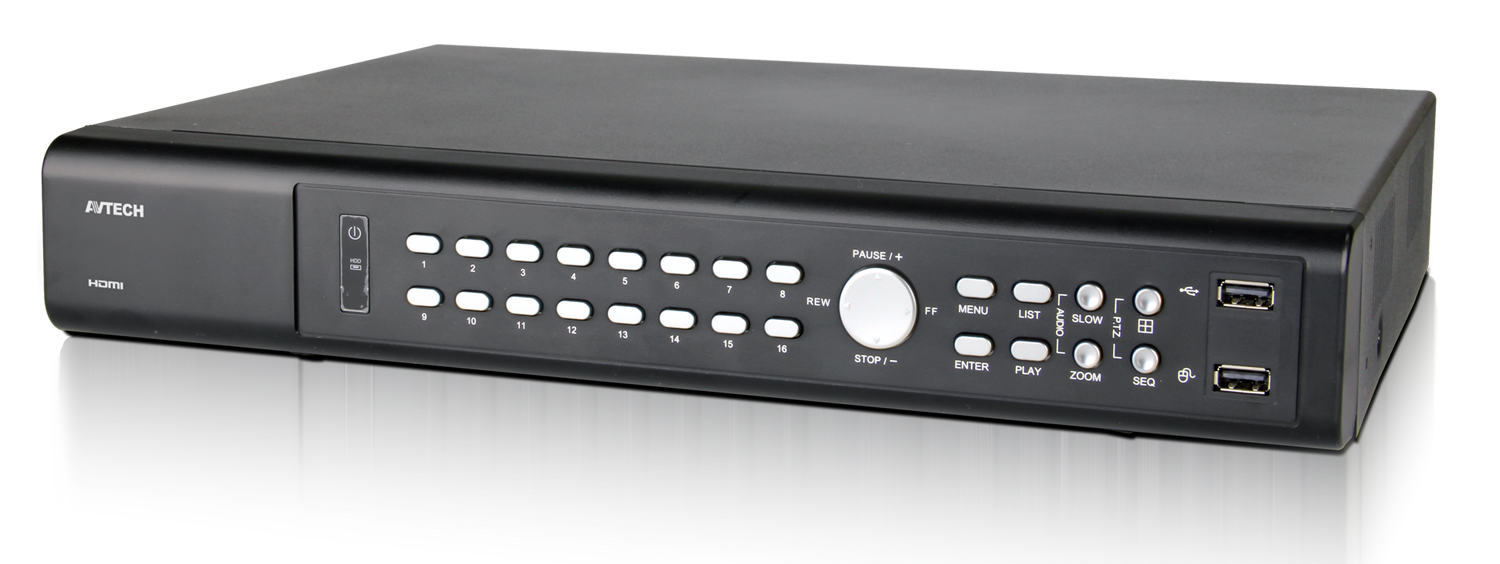

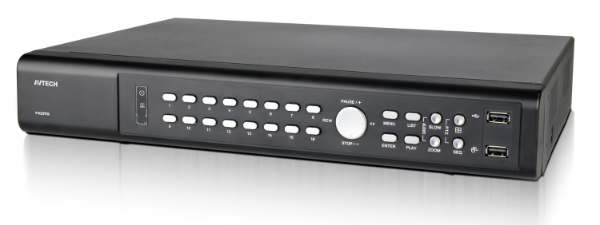

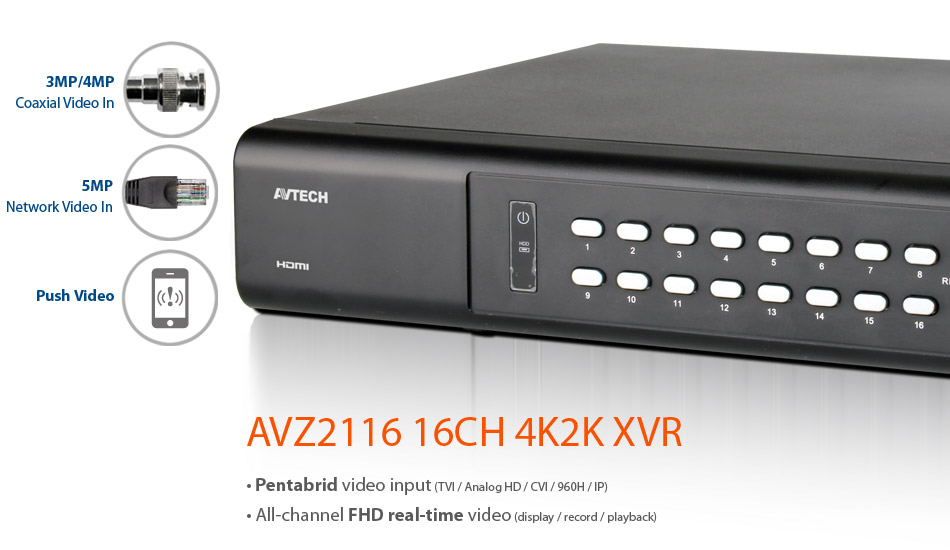

AVTECH AVZ2116 16CH Pentabrid

 Features

• Video Compression Format: H.264
• Video Signal: IP / TVI / CVI / Analog HD / 960H
• Video Input
  Analog: 16 channels TVI / CVI / Analog HD / 960H
  IP: 12 channels
• Video Output: BNC, VGA, HDMI
• Video Resolution:
  Analog Mode 5MP*** / 4MP*** / 3MP*** / 1080P / 720P / 960H / Frame / Field / CIF
  IP Mode 2560 x 1440 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 640 x 480 / 320 x 240
  *** Only CH1 ~ CH4 support 3MP ~ 5MP video recording
• Max. Recording Rate***:
  Analog Mode Up to 48 IPS @ 5MP*** Up to 60 IPS @ 4MP*** Up to 480 IPS @ 1920 x 1080
  IP Mode (12 channels) Up to 72 IPS @ 2560 x 1440 (5MP) Up to 120 IPS @ 2048 x 1536 (3MP) UP to 180 IPS @ 1920 x 1080
  *** Only CH1 ~ CH4 support 3MP ~ 5MP video recording
• Recording Mode: Manual / Timer / Motion / Remote / Alarm
• Audio: Audio In 4, Audio Out (Mono) 1
• Pre-alarm Recording: Yes
• Playback Channel: 16 CH
• Quick Search: Time / Motion / Alarm search mode
• Hard Disk Storage: 10TB SATA HDD x 2 (not includedl)
• Motion Detection Area: 16 × 12 grids per channel
• Event Notification: Push Video / Push Status / FTP / E-Mail
• Zoom: 2X digital zoom
• User Level: 4 user levels for different access privilege
• Operating Temperature: 10ºC ~ 40ºC (50ºF ~104ºF)
• Operating Humidity: 10% ~ 85%
• Dimensions (mm): 375(W) x 61(H) x 281(D)
• Please note: This unit has 1 LAN port. If connecting a switch for network cameras we recommend adding a switch with 2 or more uplink ports to connect to the DVR and to the network.We recommend the Planet FGSW-1822VHP.
